  • The facedriver and flat disc are included in delivery
  • Easily adjustable tool support for precise lathe work
  • Tailstock with spindle tip as second fixing for the workpiece
  • Twist-resistant construction thanks to the double guide frame
  • 4 adjustable speed levels for material-appropriate speed
  • Extra-powerful 350 W motor with higher reserves for longer work

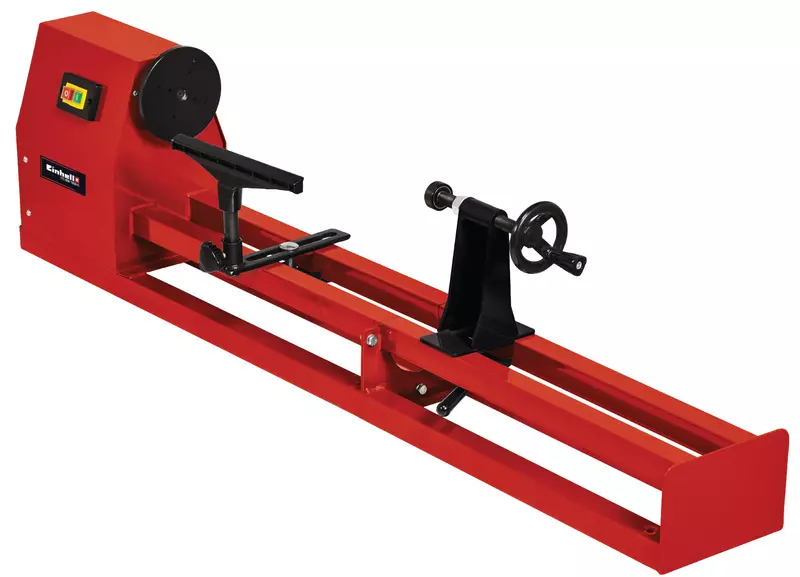

einhell-classic-woodworking-lathe-4312110-productimage-001
Article description

With the Einhell lathe TC-WW 1000/1 you can enter the world of lathes and wood and soft materials can be shaped effortlessly. The easily adjustable tool support ensures precise turning operations. The tailstock with spindle tip serves as a second fixing of the workpiece. Thanks to the double guide frame, the construction is held torsionally rigid. The 4 adjustable speed levels (890/1,260/1,760/2,600 rpm) ensure material-specific speed. An extra-powerful 350 W motor offers reserves for longer work. The maximum rotary diameter is 280 mm (to be clamped in the frame up to 350 mm), and the tip width is 1,000 mm. Delivery includes the facedriver and the flat disc.

Technical details

Idle speed max.1400 min^-1
Idle speed min.890 min^-1
Max. tool height280 mm
Max. tool length1000 mm
Motor typeBrush motor
Number of speed adjustment steps4
Product weight22.86 Kg
Support length270 mm
Working height280 mm

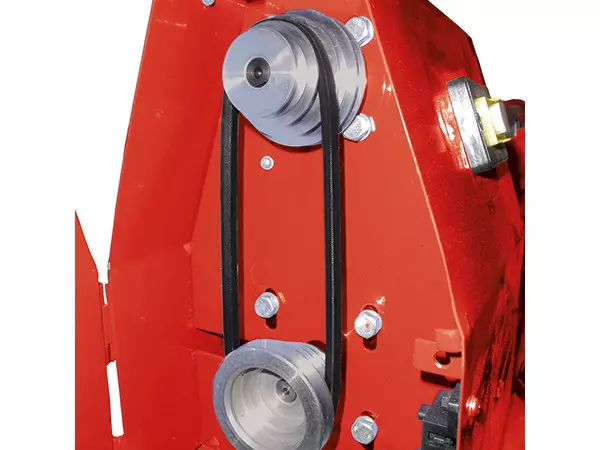

4-speed-levels

4 speed levels

With 4 adjustable speed levels (890, 1,260, 1,760 & 2,600 rpm) for fine dosing.

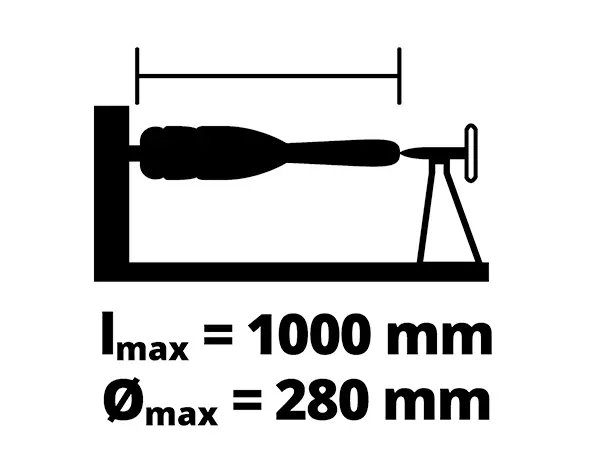

Rotary-diameter-and-tip-width

Rotary diameter and tip width

Workpieces with a diameter of 280 mm and a tip width of 1,000 mm can be clamped.

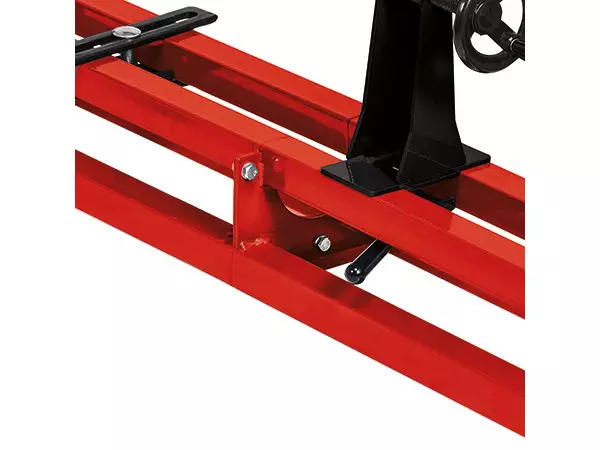

Sturdy-construction

Sturdy construction

Thanks to the double guide frame, the construction is held torsionally rigid.

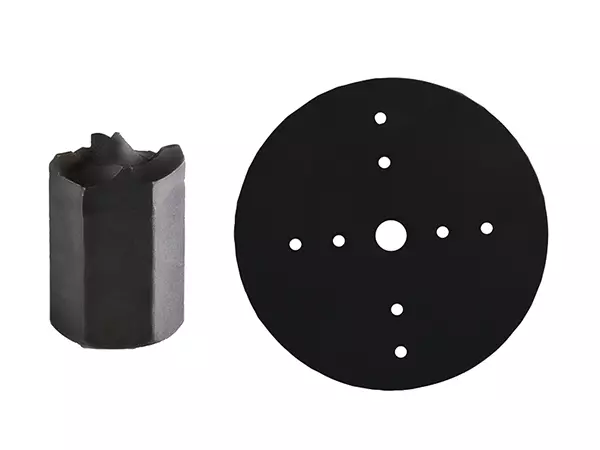

Scope-of-delivery

Scope of delivery

Delivery includes the facedriver and the flat disc.
