Stationary Belt-Disc Sander TC-US 380

Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Belt and disk grinding/sanding function
  • Swiveling belt grinding/sanding device with workpiece stop
  • Easy grinding/sanding belt change thanks to tensioning device
  • Grinding/sanding belt can be centered from outside
  • Disk grinder/sander with hook-and-loop fastening system
  • Versatile aluminum table can be used on both sanding units
  • Inclinable aluminium table with an easy-to-read angle scale
  • Cross stop can be swiveled from -60° to +60°
  • Sturdy and distortion-free design
  • 4 rubber feet for standing securely and with low vibrations
  • Connection for dust extraction system to keep the workplace clean
  • Complete with grinding/sanding belt and disk sanding paper (G80)

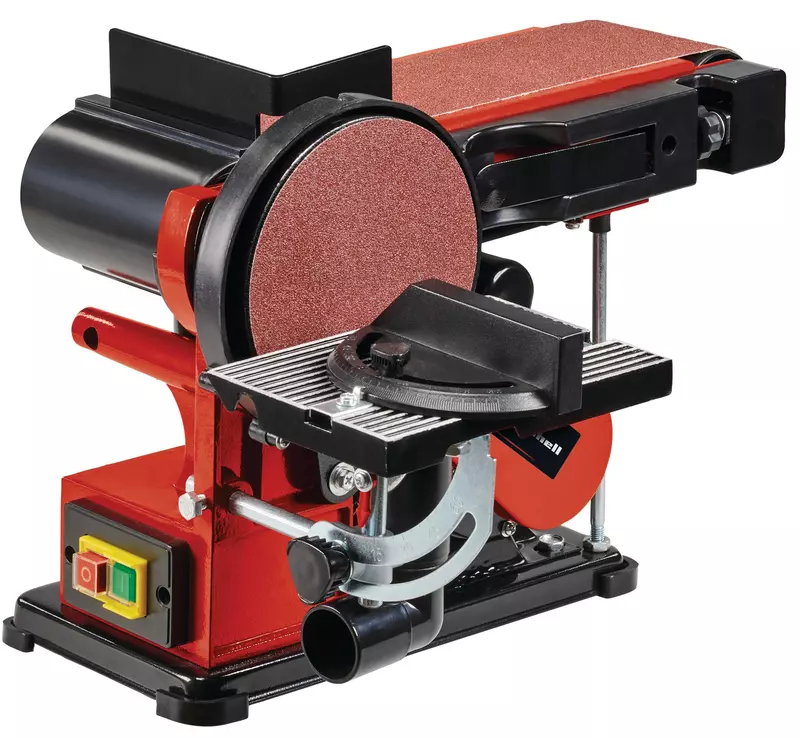

einhell-classic-stationary-belt-disc-sander-4419257-productimage-001
Article description

The Einhell stationary belt disc sander TC-US 380 is a 380 W tool with belt and disc sanding functions, and has a pivotable belt sanding device with workpiece stop. The clamping device ensures simple and uncomplicated sanding belt change, and the sanding belt centring can be adjusted from the outside. The disc sander with a diameter of 150 mm is equipped with hook and loop fastening for quick sanding belt change. The tiltable aluminium support table is sturdy and torsion-free, can be used on the sanding pad belt and is equipped with an easy-to-read angle scale for versatile applications. The transverse stop can also be pivoted from -60° to +60° degrees. Four sturdy rubber feet damp vibrations and ensure firm and secure standing. A connection for dust extraction for a clean workplace is available on the stationary belt disc sander. Delivery includes sanding belt and disc sandpaper.

Technical details

Idle speed sanding pad max.1500 min^-1
Max. swivel range (sanding belt)90 °
Max. swivel range (work support)60 °
Min. swivel range (work support)0 °
Motor typeInduction motor
Product weight13.25 Kg
Sanding belt grain80
Sanding belt length914 mm
Sanding belt speed max.292 m/min
Sanding belt width100 mm
Sanding pad diameter150 mm
Suction connection diameter36 mm
Transverse stop max.-60 °
Transverse stop min.60 °

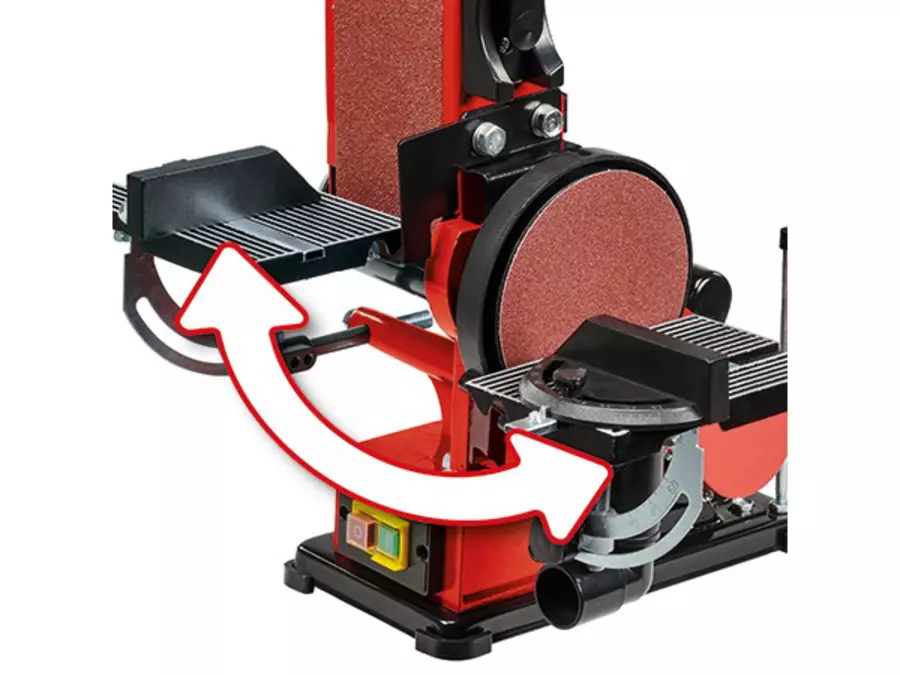

Variable-workpiece-supports

Variable workpiece supports

The extra-large workpiece supports can be adjusted and adapted depending on the workpiece and the work required.

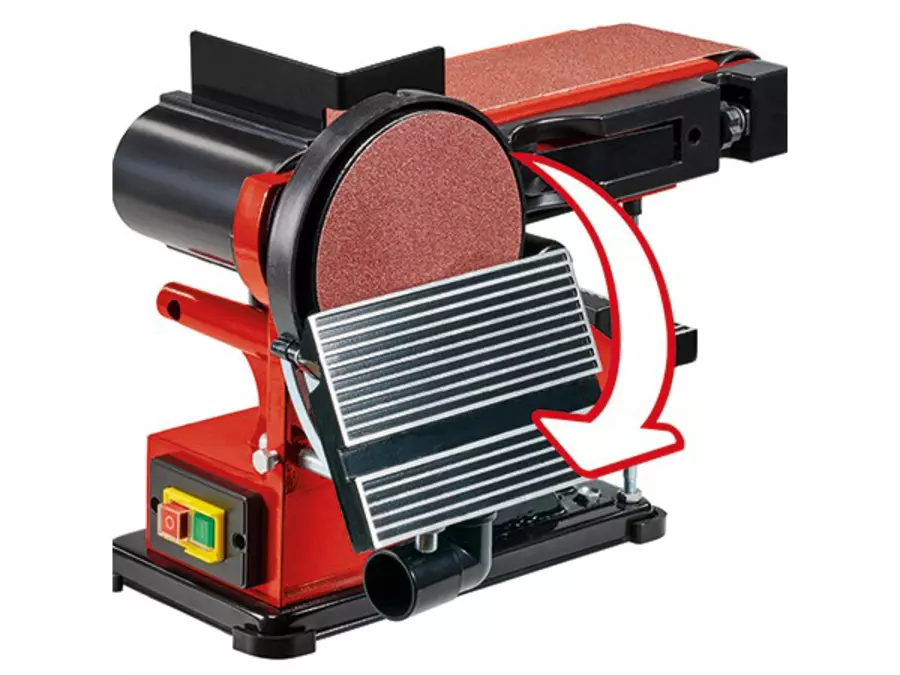

Flexible-work-support

Flexible work support

The large work support is removable, can be attached to the sanding belt or sanding pad and can be pivoted up to 45°.

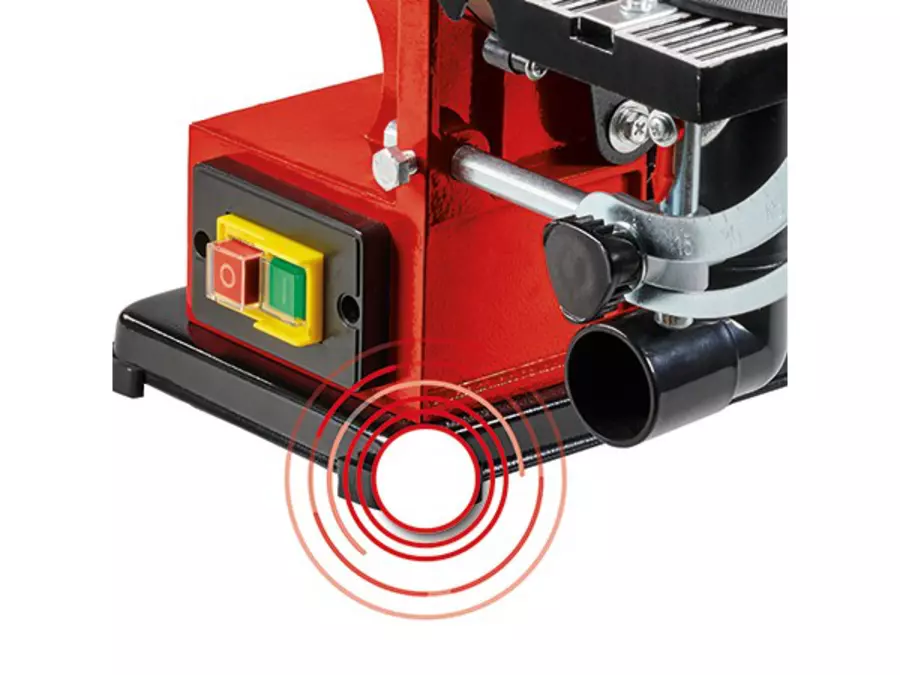

Secure-standing

Secure standing

For precise results, the rubber feet ensure secure standing and compensate for the vibrations of the device.

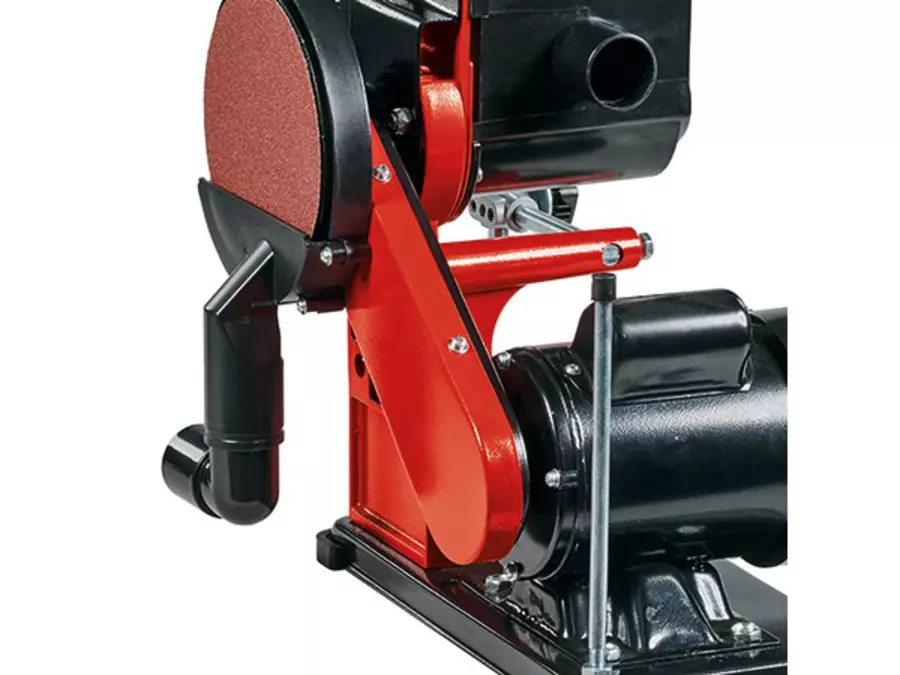

Clean-working-space

Clean working space

To ensure that the work area remains clean at all times, various devices for dust extraction can be connected to the extraction connection (Ø 36 mm).

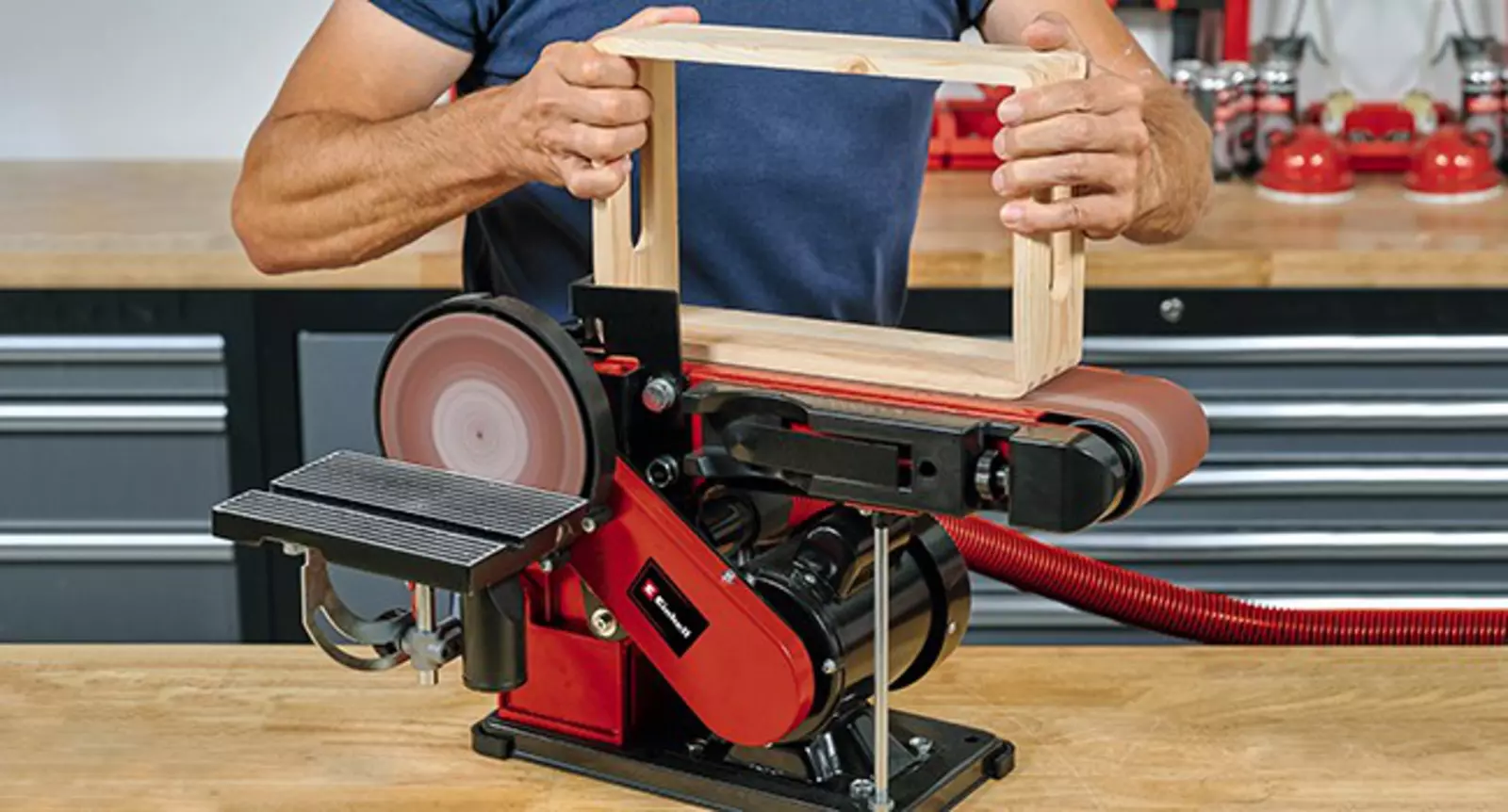

Sanding-belt-for-large-areas

Sanding belt for large areas

With the help of the 100 mm wide and 914 mm long sanding belt, even large workpieces can be sanded without any problems. The sanding belt reaches a maximum speed of up to 292 m/min.

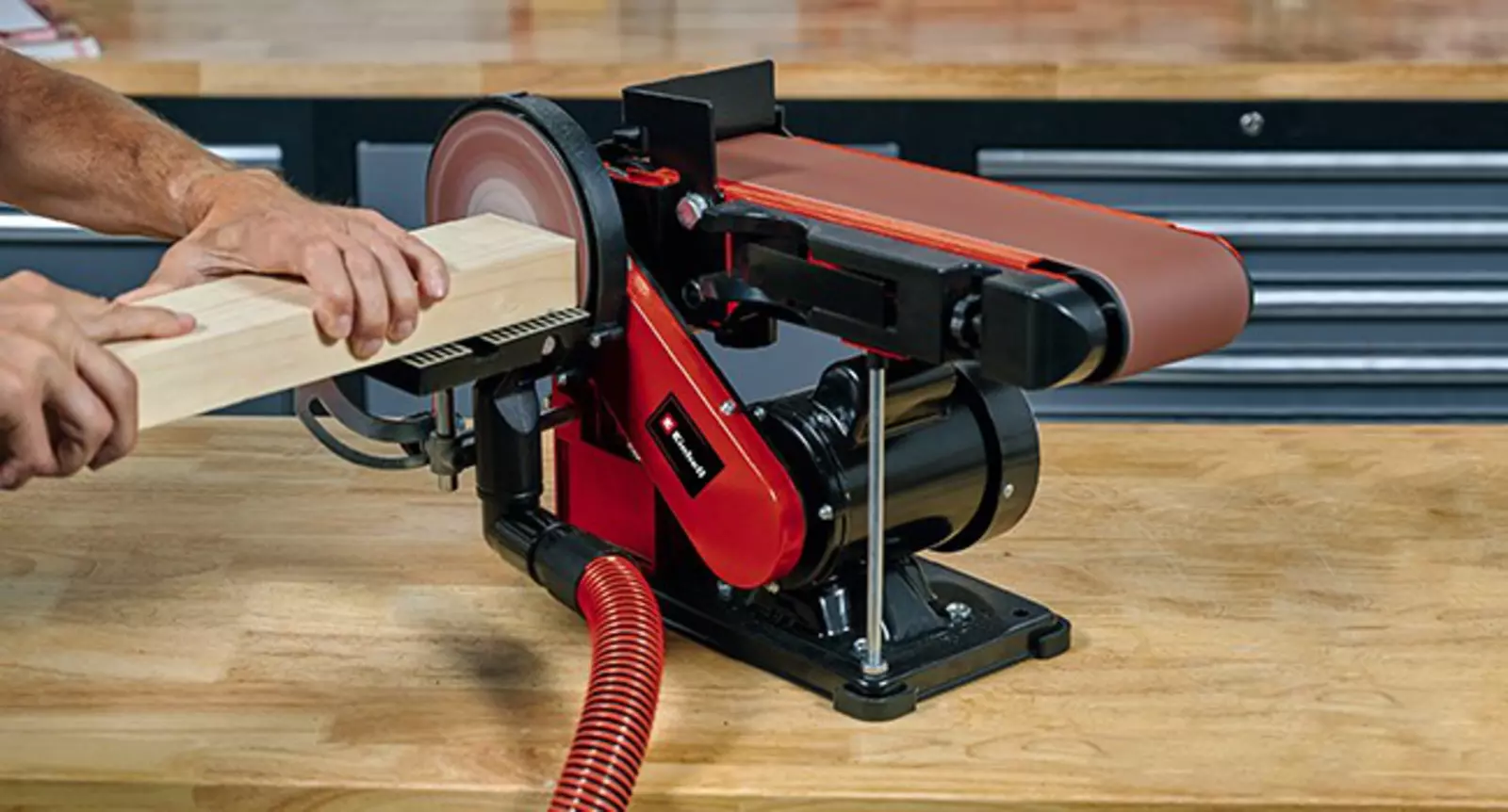

Sanding-disc-for-detailed-work

Sanding disc for detailed work

When it comes to detailed work or smaller sanding surfaces, the disc sander with an idle speed of 1,450 rpm minute comes into its own. Sanding pads with a diameter of 150 mm can be used.

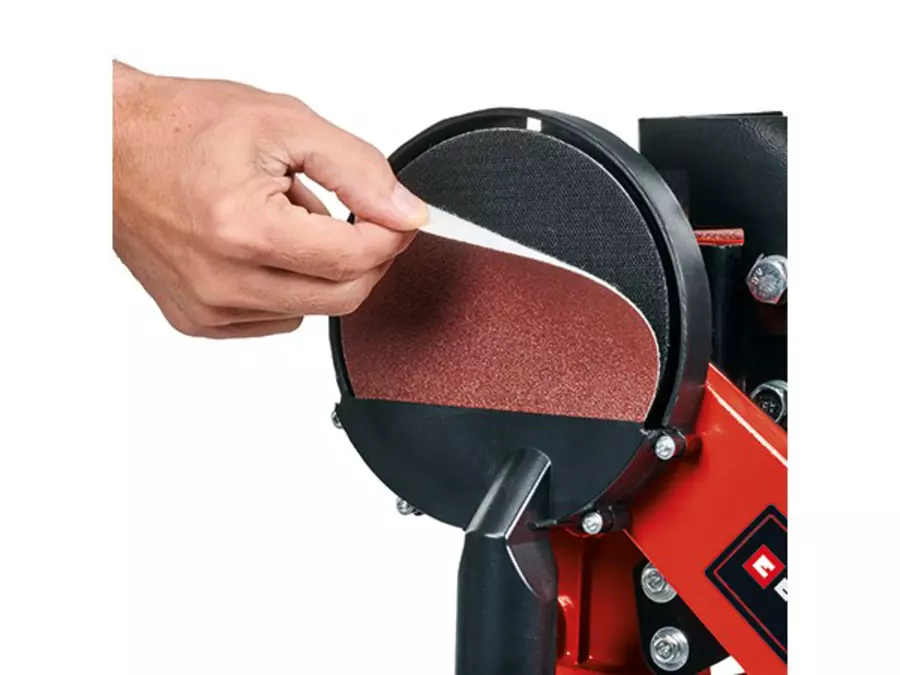

Hook--loop-fastening

Hook & loop fastening

The disc sander with a diameter of 150 mm includes hook and loop fastening for quick and easy sanding pad replacement.

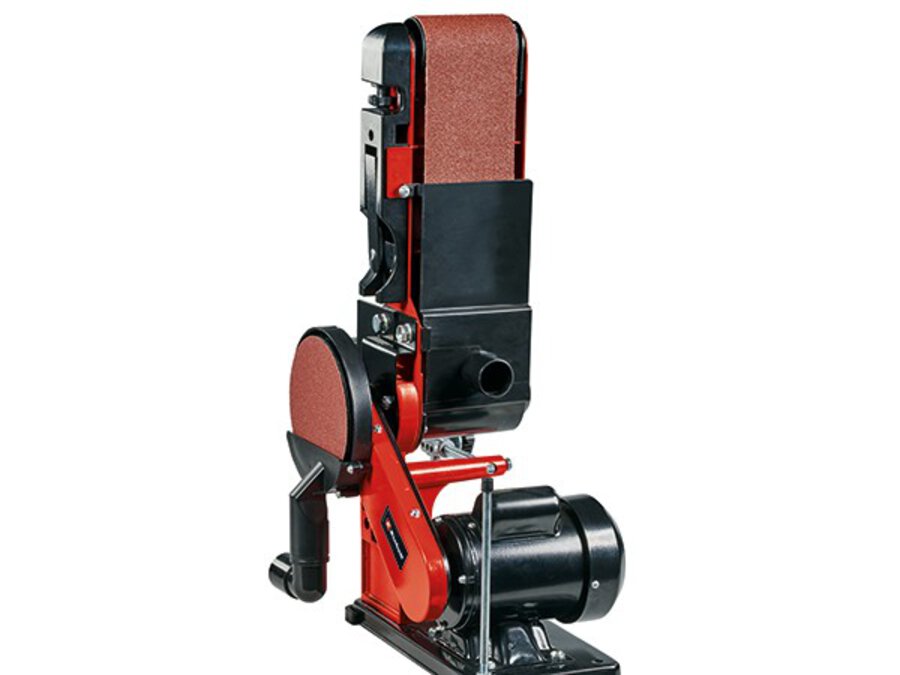

Pivoting-sanding-belt

Pivoting sanding belt

To adapt optimally to any task, the pivotable sanding belt can be positioned both horizontally and vertically.

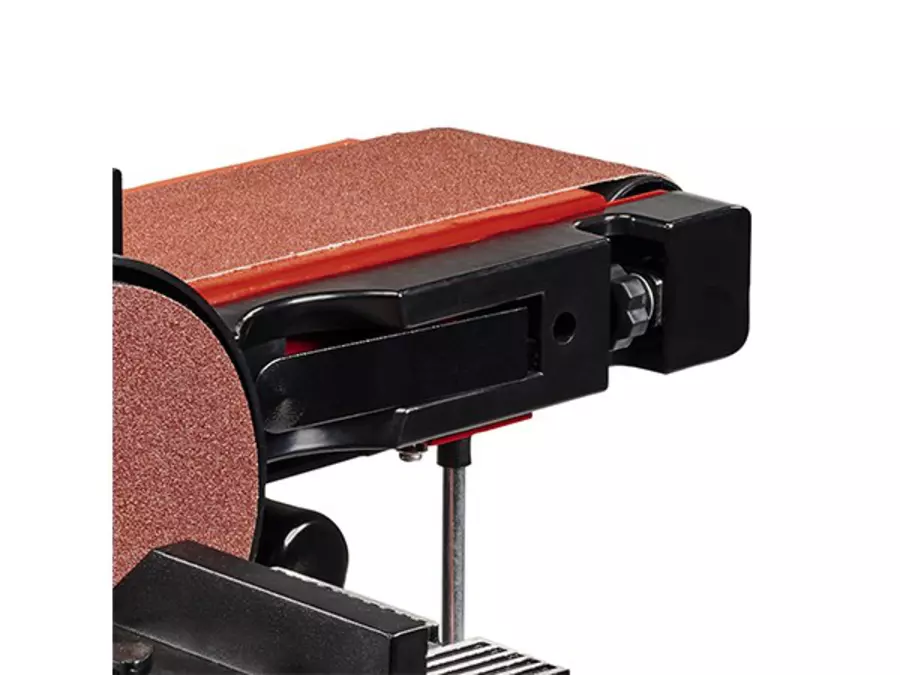

Easy-sanding-belt-change

Easy sanding belt change

The belt run can be adjusted or changed quickly and easily thanks to the tool-free sanding belt centring.

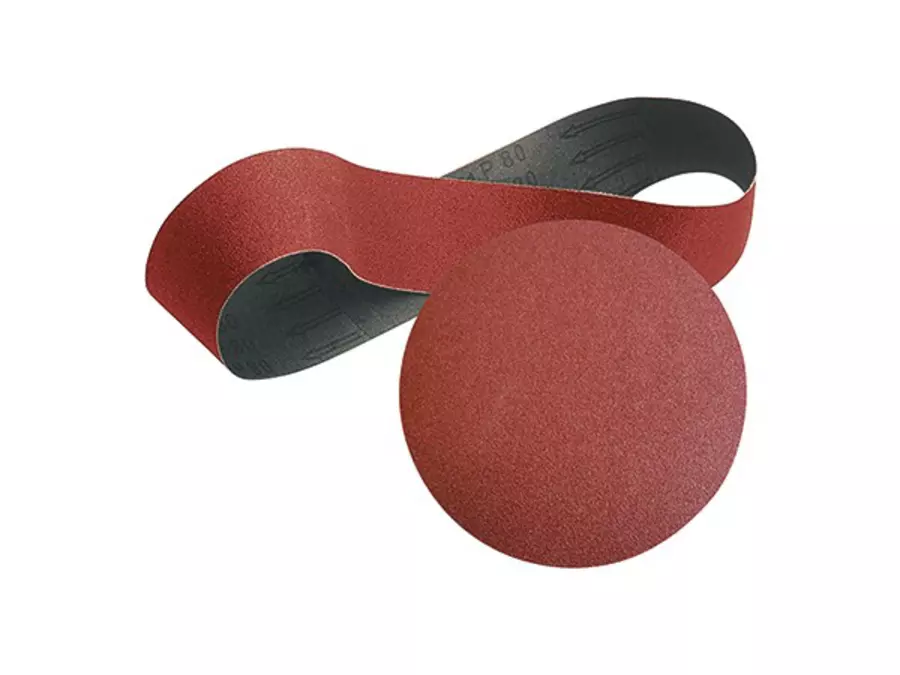

Including-accessories

Including accessories

So that you can get started right away, the stationary belt disc sander is supplied with 1x sanding belt (K80) and 1x disc sandpaper (K80).

What sanding can be carried out using a belt sander?

The belt sander is mainly used for sanding large areas. It stands out for its high removal rate and is therefore ideally suited for the removal of paint or varnish layers.

Can surfaces be finely sanded and polished with the belt sander?

No, the belt sander is used to remove entire layers of material. For finer sanding or polishing, a rotary sander, a belt sander or a multi-sander should be used.

Can belt sanders be used to remove layers of paint and varnish?

Yes, the device is particularly suitable for large areas.

What materials can be processed with the belt sander?

The belt sander can be used for sanding wood, plastic and non-ferrous metals.

Can belt sanders work on hard-to-reach places?

No, multi-sanders or delta sanders are suitable for this purpose.
